The Venturi Pattern Plug Valve 300LB, manufactured by CNM Valve, is a highly efficient, durable, and precision-engineered valve designed for demanding industrial applications. This Plug Valve is crafted to regulate fluid flow, ensuring minimal pressure drop and increased energy savings. Its unique Venturi pattern design enhances flow characteristics by reducing turbulence and providing smooth fluid transition, making it ideal for high-pressure environments. With a pressure rating of 300LB, this valve guarantees reliable performance even under extreme conditions.
Venturi pattern plug valve can be used as ideal cutting off valves in any working condition, including most critical environments, which feature very compact in design, requiring only less installation space. So, it can also be applicable in such occasions as quick action, without failure, and highly effect tightness, to be installed at any random position. The basic operation of this kind plug valve is quite convenient. The valve will open to the closing position as they turn at 90, and vise versa.
Size :
Available in multiple sizes to suit different industrial requirementsEnd Connections :
Flanged, butt weld, or threaded end connectionsMaterial :
Stainless steel, carbon steel, and special alloysTemperature Range :
-29℃—150℃Pressure Rating :
300LBDesign Standards :
API599Suitable Medium :
Water, Gas, OilKey Features:
Venturi Pattern Design: The valve is built with a streamlined internal flow path to minimize pressure loss and improve fluid dynamics.
High Durability: Constructed from premium materials that offer excellent resistance to corrosion, erosion, and wear.
Compact and Robust: Its compact structure allows easy installation while ensuring robust functionality for various industrial systems.
Tight Sealing: Ensures leak-free operations, ideal for high-pressure, high-temperature applications.
Precision Manufacturing by CNM Valve: This product adheres to the strict quality standards set by CNM Valve, ensuring superior reliability and longevity.

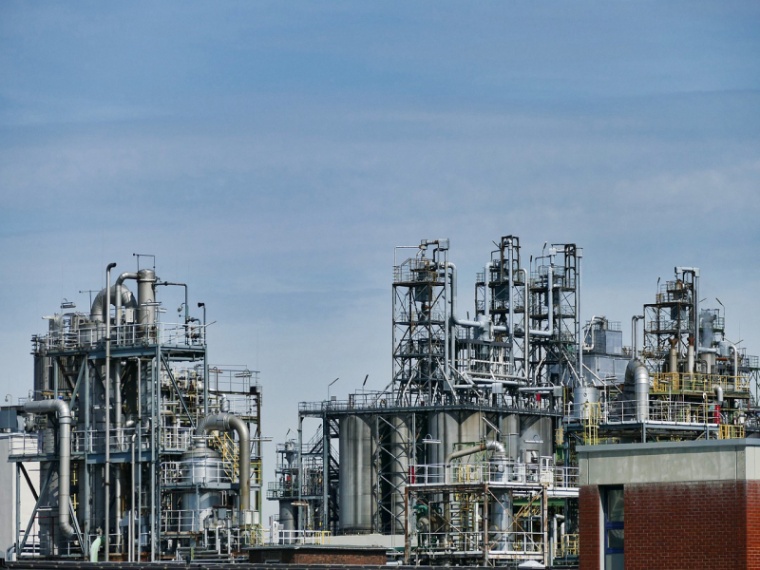

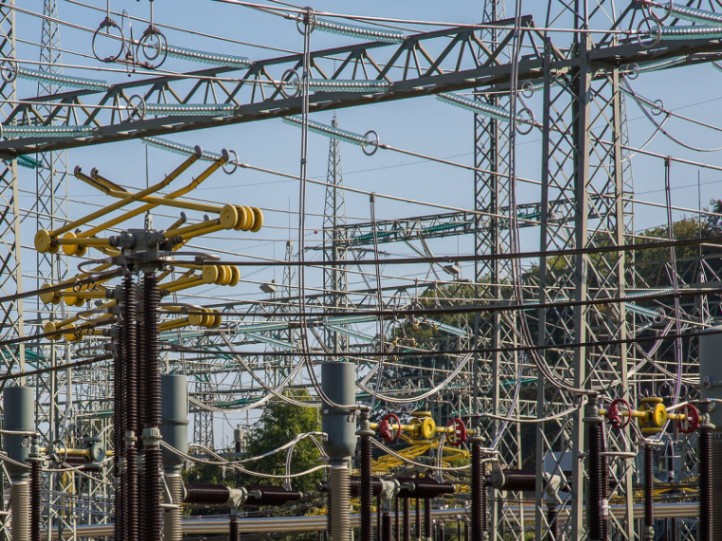

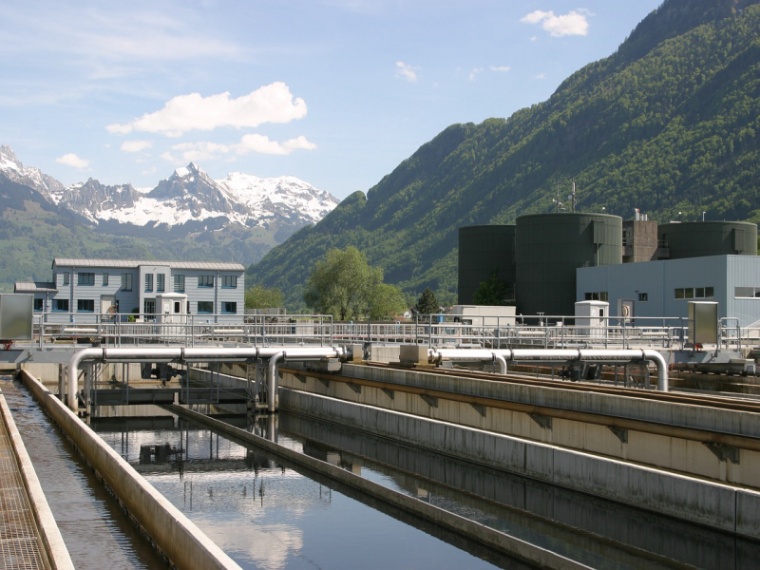

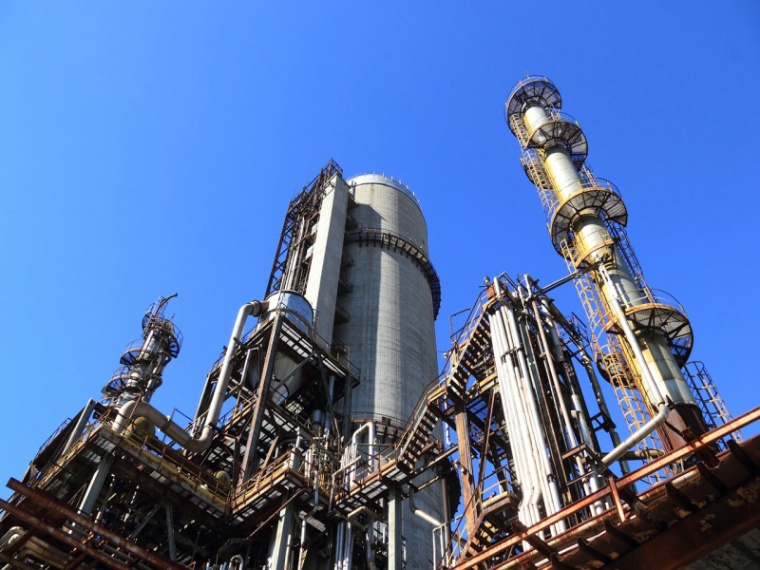

Applications:
Technical Specifications:
Pressure Rating: 300LB
Size Range: Available in multiple sizes to suit different industrial requirements.
End Connections: Available with flanged, butt weld, or threaded end connections.
Temperature Range: Suitable for a wide range of operating temperatures, making it versatile for various applications.
Material Options: Offered in a variety of materials, including stainless steel, carbon steel, and special alloys to meet different application needs.
Design and manufacture: API599
Faco to face: ASME B16.10
Flange end: ASME B16.5
Test: API598
Bore: Reduce
Class: 300LB
Shell: 7.5MPa
Seal(W): 5.5MPa
Seal(G): 0.6MPa
Property TEM.: -29℃—150℃
Suitable medium: Water, Gas, Oil
Part Material of Venturi Pattern Plug Valve
| No | Part name | Material |
| 1 | Body | ASTM A216 WCB |
| 2 | Plug | ASTM A216 WCB+HF |
| 3 | Joint | ASTM A216 WCB |
| 4 | Stem | F6a |
| 5 | Bolt | ASTM A193 B7 |
| 6 | Nut | ASTM A194 2H |
| 7 | Metal gasket | SS304 |
| 8 | Packing | Graphite |
| 9 | Bonnet | C.S |
| 10 | O-ring | Rubber |
| 11 | Gear | UCA |
| 12 | Anti-static | SS304 |
Certificate:
Why choose CNM VALVE?
The Venturi pattern design optimizes flow and reduces energy consumption.As a leading manufacturer, CNM Valve ensures each valve meets the highest standards of durability and performance.CNM Valve provides customization options for materials, sizes, and connection types to meet specific project requirements
